Détails sur le produit:
Conditions de paiement et expédition:
|
| Garantie: | 1 an | Service après-vente fourni: | Pièces de rechange, installation libres de champ, commissionnant et s'exerçant, maintenance sur le t |
|---|---|---|---|
| Gamme de la vitesse d'axe (r.p.m): | 2000 - 6000 | Application: | Médecine traitant, produits chimiques traitant, plastiques traitant, traitement des denrées alimenta |
| Taille de sortie (maille): | 60 - 320 | Matériel: | Acier inoxydable |
| Capacité: | Différentes capacités de différents modèles | ||
| Mettre en évidence: | broyeur de poudre d'extra-fin,broyeur pharmaceutique de poudre |
||
Classifying mill high quality 500 mesh pulverizer fine powder grinding machine
Main Usage

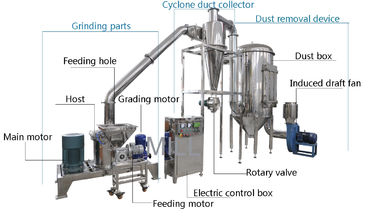

This machine is made up of three parts: main machine, auxiliary machine and electric control box.
It has properties of wind selection, having no sieve or net, and an even granularity of the processed material.
The production process going on continuously and the machine can undertake grinding of chemical products, foodstuff, medicine, medicament, cosmetics, plastic, dyestuff, resin, grain, etc.
Working Method
The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fastrotating blades. The power passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.
As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bagtype collector via the material exit pipe be means of negative pressure wind conveyance.The discharge material meets the requirement for the product.
Technical Data
| Model | Main Structural Dimensions(mm) | Capacity | Input Particle Size | Output Particle Size | Speed | Machine weight | Total power | ||||||
| L1 | L2 | H1 | H2 | H3 | H4 | W1 | Kg/H | mm | mm | rpm | Kg | KW | |
| JB-15 | 3950 | —— | 2640 | 850 | 650 | 350 | 1450 | 10-150 | <6 | 60-320 | 1100 | 600 | 13.5 |
| JB-20 | 4300 | 5900 | 2800 | 850 | 650 | 350 | 1450 | 15-200 | <10 | 60-320 | 1300 | 5400 | 21 |
| JB-30 | 5250 | 7050 | 3200 | 950 | 650 | 350 | 1550 | 50-600 | <12 | 60-320 | 2000 | 3800 | 46 |
| JB-60 | 6100 | 8100 | 3700 | 1050 | 650 | 400 | 2000 | 100-1000 | <15 | 60-320 | 3800 | 2900 | 84 |
| JB-80 | 7200 | 9200 | 4250 | 1150 | 650 | 400 | 2300 | 120-1800 | <15 | 60-320 | 5100 | 2500 | 123 |
| JB-100 | 7900 | 10100 | 4500 | 1250 | 650 | 400 | 2500 | 150-2000 | <20 | 60-320 | 7400 | 2000 | 183 |

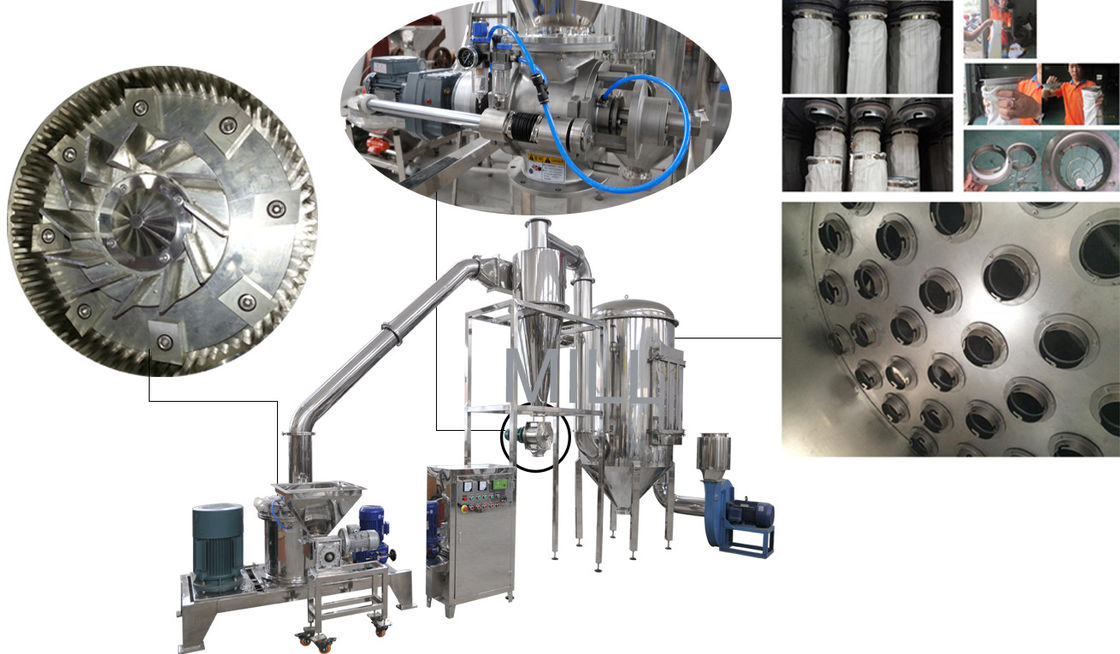

Pictures
Our service
Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history of more than 10 years.
And our factory’s history is more than 15 years.
2) We have CE certificate, ISO,BV...etc.
3) Each year,we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc
FAQ:
If you want to send inquriy to me about Stainless steel commercial Spice pulverizer machine,grinding pulverizer machine from China, could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material ?
2) What capacity you expect by spice grinding machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
