Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder

Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder
Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder

Image Grand :  Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder

Détails sur le produit:

Lieu d'origine: Jiangsu, Chine
Nom de marque: BOLIMILL
Certification: CE, ISO
Numéro de modèle: JB-20/30/60/80/100

Conditions de paiement et expédition:

Quantité de commande min: >Ensembles =1
Prix: negotiable
Détails d'emballage: paquet en bois
Capacité d'approvisionnement: 50 ensembles/ensembles par mois
Description de produit détaillée
Garantie: 1 an Service après-vente fourni: Pièces de rechange, installation libres de champ, commissionnant et s'exerçant, maintenance sur le t
Tension: 220-660 V Gamme de la vitesse d'axe (r.p.m): 2000 - 6000
Application: Médecine traitant, produits chimiques traitant, plastiques traitant, traitement des denrées alimenta Matériel: Acier inoxydable
Applicantion: produit chimique, nourriture et ligne pharmaceutique Port: CHANGHAÏ CHINE
Mettre en évidence:

super fine powder grinder

,

pharmaceutical powder grinder

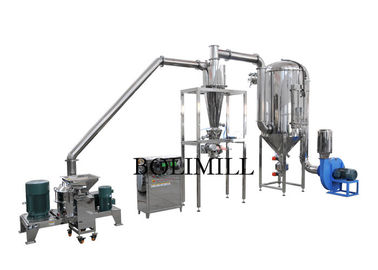

New Design Mustard Seeds Fine Powder Grinding Machine With Air Cooling System

Main Usage

Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc.



Features

1.The design is compact and structure is reasonable. The material is equipped with an internal classification mechanism so that grinding and classification are carried out simultaneously, thus reducing energy consupmtion.

2.Equipped with a blower, which dissipates the heat in the machine continuously, the machine is fit for the grinding of thermal sensitive materials.

3.Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 80-320 mesh.

4.Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required granularity will be obtained.

5.The top cover of the main machine is opened with pneumatic springs and the body is constructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts.



Technical Data

Model Main Structural Dimensions(mm) Capacity Input Particle Size Output Particle Size Speed Machine weight Total power
L1 L2 H1 H2 H3 H4 W1 Kg/H mm mm rpm Kg KW
JB-15 3950 —— 2640 850 650 350 1450 10-150 <6 60-320 1100 600 13.5
JB-20 4300 5900 2800 850 650 350 1450 15-200 <10 60-320 1300 5400 21
JB-30 5250 7050 3200 950 650 350 1550 50-600 <12 60-320 2000 3800 46
JB-60 6100 8100 3700 1050 650 400 2000 100-1000 <15 60-320 3800 2900 84
JB-80 7200 9200 4250 1150 650 400 2300 120-1800 <15 60-320 5100 2500 123
JB-100 7900 10100 4500 1250 650 400 2500 150-2000 <20 60-320 7400 2000 183

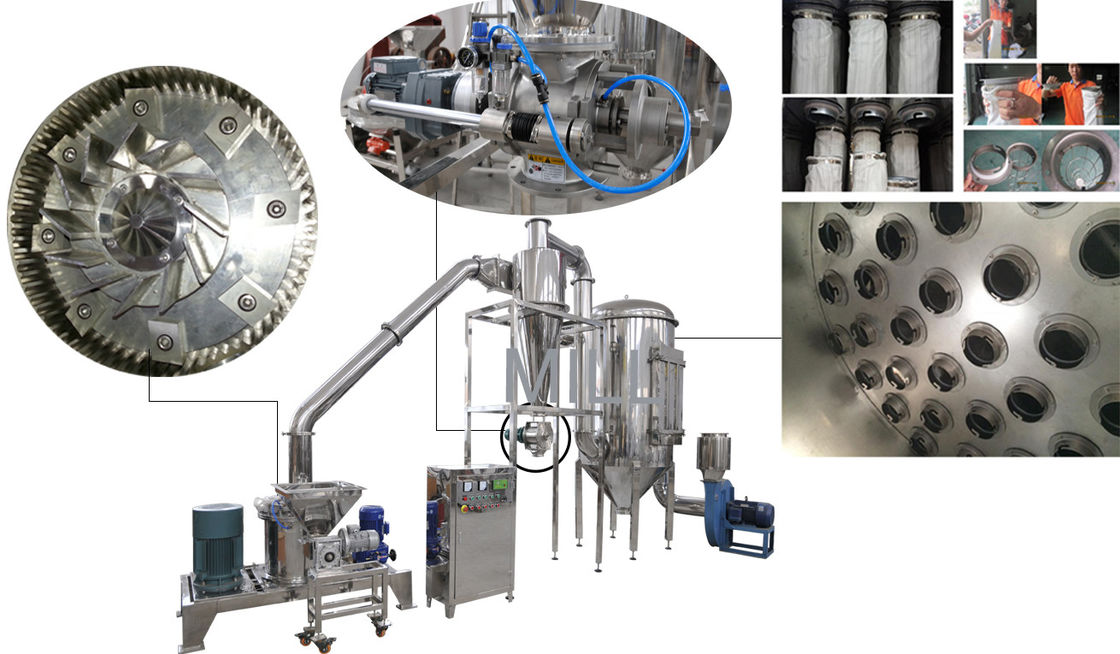

Detail Pictures of New Design Mustard Seeds Fine Powder Grinding Machine With Air Cooling System

Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder 0





Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder 1

Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder 2

Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder 3



Our service

Mustard Seeds Air Cooling System 6000RPM Super Fine Powder Grinder 4





Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.

1) We are golden supplier on alibaba with a history of
more than 10 years.

And our factory’s history is
more than 15 years.

2) We have
CE certificate, ISO,BV...etc.

3) Each year,we takes part in a lot of Expos ,for example:
FIC, CPHI, API...etc

FAQ:

If you want to send inquriy to me about Stainless steel commercial Spice pulverizer machine,grinding pulverizer machine from China, could you please tell me?


1) What material you want to grind, is it dry? what is the size of feed material ?

2) What capacity you expect by spice grinding machine? (kg/h)

3) What mesh or mm or micron(size) of the powder you want?

4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

(We only provide 3P, because our machines are all for industrial use,not for family.)

5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.


Then our communication will be more efficient.
