| Nom de produit: | Équipement de mélange de poudre de mélangeur de charrue de cisaillement de malaxeur de charrue | Matériel: | SUS304,316L |
|---|---|---|---|
| Mot-clé: | machine de mixng de poudre | ||
| Mettre en évidence: | 316L Powder Mixing Equipment,2.2kw Powder Mixing Equipment,50kg Powder Mixing Equipment |
||

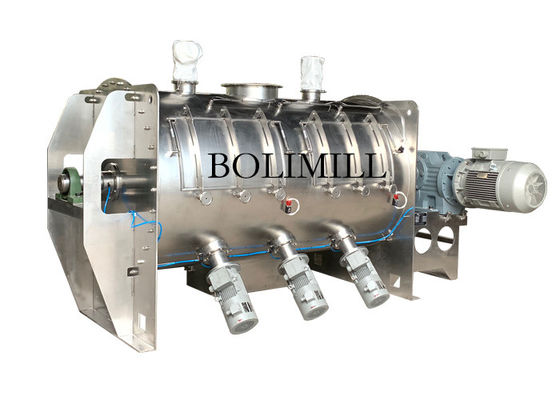

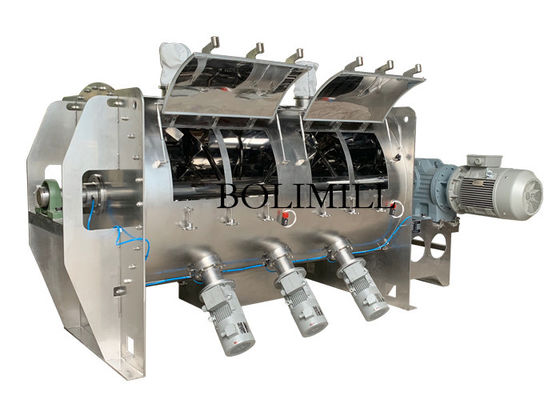

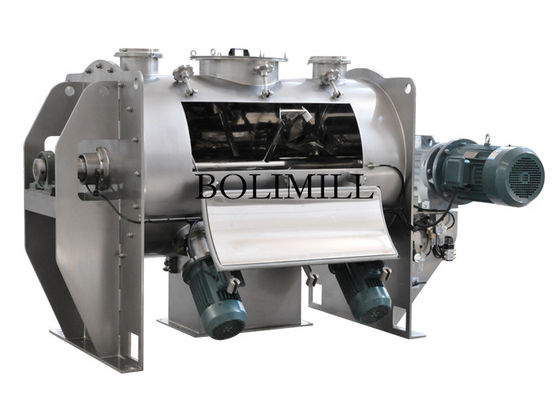

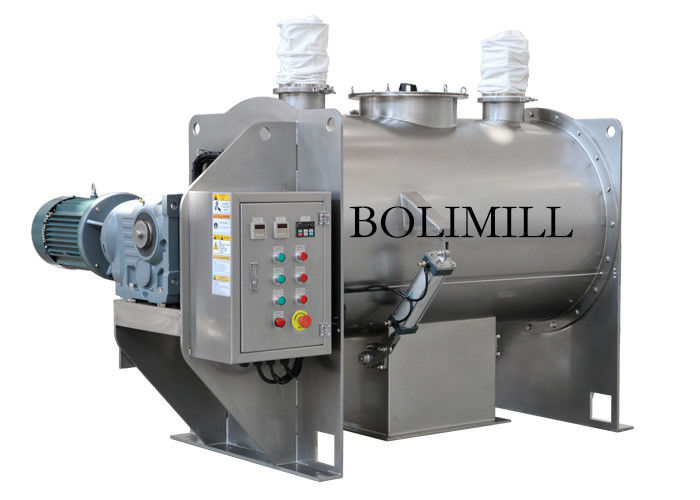

Plough mixing machine / shear plough mixer / powder mixing equipment
1.Plough mixer
2. CE, ISO, SGS, BV approved;
3. Wide application in: Powder and liquid mixing (like Food, Pharmaceutics; Agriculture; Dyestuff; Chemicals), small fiber, and paste with low viscosity
General Introduction
Plough mixer is characterized by high mixing precision, and wide application to food, chemical industries, and building lines. The major sections of a mixer are barrel, plough shears, feeding ports, discharging port and driven unit!!
Technical Data of Plough mixing machine / shear plough mixer / powder mixing equipment:
| Model | Main Structural Dimensions(mm) | Volume | Max loading | Speed | Machine weight | power1 | power2 | ||
| L | W | H | L | KG | Rpm/min | Kg | KW | KW | |
| JB-100 | 1400 | 580 | 1000 | 100 | 50 | 24 | 220 | 2.2 | 0.75 |
| JB-150 | 2000 | 630 | 1150 | 150 | 75 | 24 | 300 | 3 | 0.75 |
| JB-200 | 2300 | 750 | 1250 | 200 | 100 | 24 | 400 | 4 | 1.1 |
| JB-300 | 2700 | 850 | 1350 | 300 | 150 | 24 | 600 | 5.5 | 1.5 |
| JB-500 | 2750 | 800 | 1400 | 500 | 250 | 24 | 800 | 7.5 | 2.2 |
| JB-1000 | 3350 | 1100 | 1550 | 1000 | 500 | 24 | 1400 | 15 | 3 |
If you want mirror type ribbon mixer .Please check the following picture.
If you want to send inquri about Plough mixing machine / shear plough mixer / powder mixing equipment, could you please tell me?
1) What material you want to mix?
2) What capacity you expect ? (kg/batch or litre/batch )
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
4) What material of the equipment you want? usually we adopt all stainless steel 304.
You can also choose A all carbon steel
B contact part SS304, other parts carbon steel
C all SS 316
D contact part SS 316, other parts SS 304
Then our communication will be more efficient.
